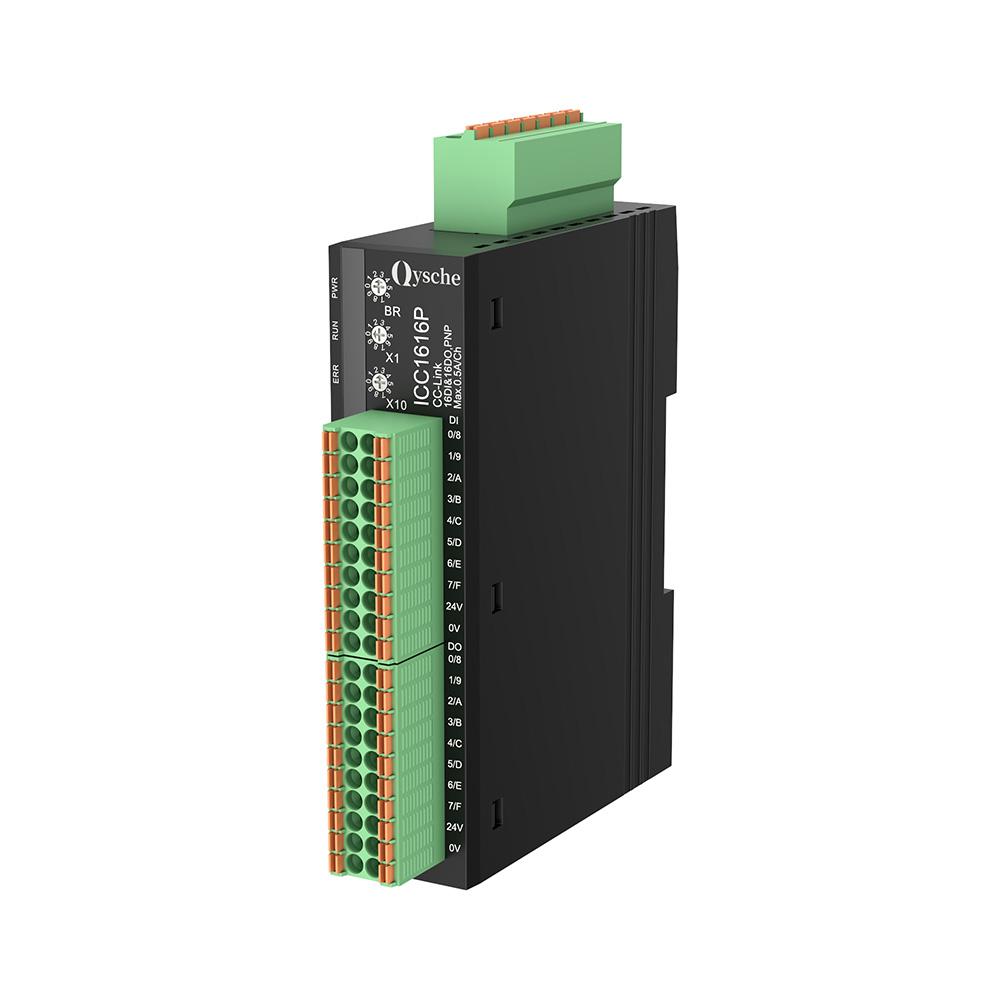

Integrated I/O, CC-Link ,16ch DI, 16ch DO, PNP type, 102*72*25mm, space saving, smart, fast wiring, RTB(Removable Terminal Block), easy configuration, suitable for Mitsubishi Q, FX and other series of master stations, IP20.
interface data
| Protocol | CC-Link |
|---|---|
| Data Transfer Medium | CC-Link cable |
| Bus Interface | Push-in Connection |
| Data Transfer Rates | 10 Mbps/5 Mbps/2.5 Mbps/625 kbps/156 kbps |
| Distance Between Stations | ≤100 m/≤160 m/≤400 m/≤900 m/≤1200 m |
| Electrical Isolation | 500V |
technical data
| Power Supply | 18~36 VDC |
|---|---|
| Weight | 150g |
| Module Size | 102*72*25mm |
| Protection Class | IP20 |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~75℃ |
| Relative Humidity | 95 %, no condensation |
| Power Interface | Push-in connection |
digital input
| Nominal Voltage | 24VDC(±25%) |
|---|---|
| Number of Inputs | 16 |
| Transistor Polarity | PNP |
| Input Current | 4mA |
| Electrical Isolation | 500V |
| Indicator | Green LED |
| "0" Signal Voltage | -3~+3 V |
| “1” Signal Voltage | 15~30 V |
| Input Filter | 3ms |
| Isolation Method | Optocoupler isolation |
digital output
| Nominal Voltage | 24VDC(±25%) |
|---|---|
| Number of Outputs | 16 |
| Transistor Polarity | PNP |
| Load Type | ohmic, inductive load |
| Max. Output Current | Max: 500mA |
| Port Protection | Overvoltage, overcurrent |
| Electrical Isolation | 500V |
| Indicator | Green LED |
| Isolation Method | Optocoupler isolation |
